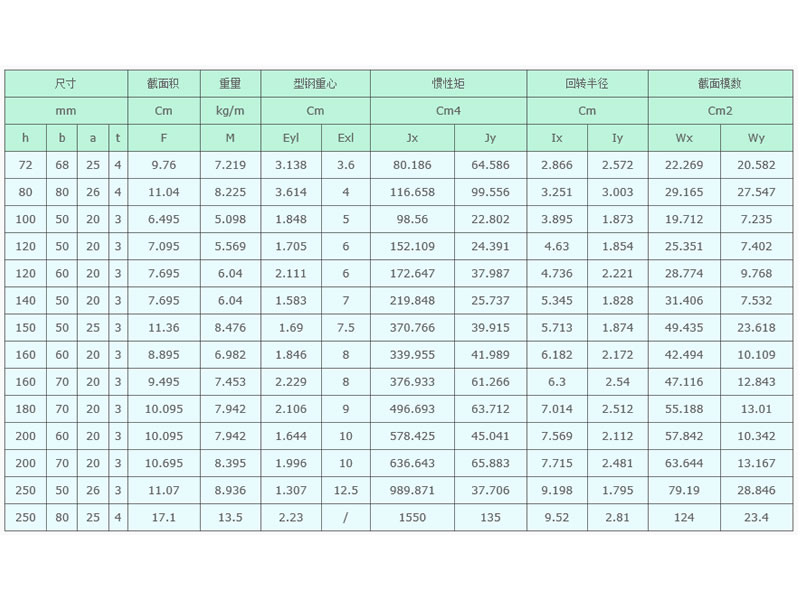

冷彎內卷邊或C型鋼
冷彎內卷邊或C型鋼
| 尺寸 |
截面積 |
重量 |
型鋼重心 |
慣性矩 |
回轉半徑 |
截面模數 |
| mm |
Cm |
kg/m |
Cm |
Cm4 |
Cm |
Cm2 |
|
h |
b |
a |
t |
F |
M |
Eyl |
Exl |
Jx |
Jy |
Ix |
Iy |
Wx |
Wy |
|
72 |
68 |
25 |
4 |
9.76 |
7.219 |
3.138 |
3.6 |
80.186 |
64.586 |
2.866 |
2.572 |
22.269 |
20.582 |
|
80 |
80 |
26 |
4 |
11.04 |
8.225 |
3.614 |
4 |
116.658 |
99.556 |
3.251 |
3.003 |
29.165 |
27.547 |
|
100 |
50 |
20 |
3 |
6.495 |
5.098 |
1.848 |
5 |
98.56 |
22.802 |
3.895 |
1.873 |
19.712 |
7.235 |
|
120 |
50 |
20 |
3 |
7.095 |
5.569 |
1.705 |
6 |
152.109 |
24.391 |
4.63 |
1.854 |
25.351 |
7.402 |
|
120 |
60 |
20 |
3 |
7.695 |
6.04 |
2.111 |
6 |
172.647 |
37.987 |
4.736 |
2.221 |
28.774 |
9.768 |
|
140 |
50 |
20 |
3 |
7.695 |
6.04 |
1.583 |
7 |
219.848 |
25.737 |
5.345 |
1.828 |
31.406 |
7.532 |
|
150 |
50 |
25 |
3 |
11.36 |
8.476 |
1.69 |
7.5 |
370.766 |
39.915 |
5.713 |
1.874 |
49.435 |
23.618 |
|
160 |
60 |
20 |
3 |
8.895 |
6.982 |
1.846 |
8 |
339.955 |
41.989 |
6.182 |
2.172 |
42.494 |
10.109 |
|
160 |
70 |
20 |
3 |
9.495 |
7.453 |
2.229 |
8 |
376.933 |
61.266 |
6.3 |
2.54 |
47.116 |
12.843 |
|
180 |
70 |
20 |
3 |
10.095 |
7.942 |
2.106 |
9 |
496.693 |
63.712 |
7.014 |
2.512 |
55.188 |
13.01 |
|
200 |
60 |
20 |
3 |
10.095 |
7.942 |
1.644 |
10 |
578.425 |
45.041 |
7.569 |
2.112 |
57.842 |
10.342 |
|
200 |
70 |
20 |
3 |
10.695 |
8.395 |
1.996 |
10 |
636.643 |
65.883 |
7.715 |
2.481 |
63.644 |
13.167 |
|
250 |
50 |
26 |
3 |
11.07 |
8.936 |
1.307 |
12.5 |
989.871 |
37.706 |
9.198 |
1.795 |
79.19 |
28.846 |
|
250 |
80 |
25 |
4 |
17.1 |
13.5 |
2.23 |
/ |
1550 |
135 |
9.52 |
2.81 |
124 |
23.4 |
