冷彎卷邊Z型鋼

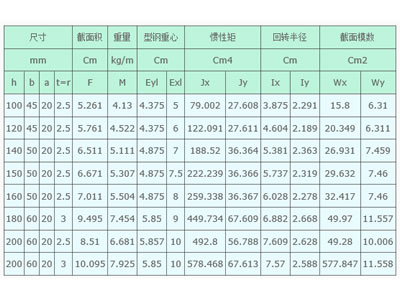

冷彎卷邊Z型鋼
| 尺寸 |
截面積 |
重量 |
型鋼重心 |
慣性矩 |
回轉半徑 |
截面模數 |
| mm |
Cm |
kg/m |
Cm |
Cm4 |
Cm |
Cm2 |
|
h |
b |
a |
t=r |
F |
M |
Eyl |
Exl |
Jx |
Jy |
Ix |
Iy |
Wx |
Wy |
|
100 |
45 |
20 |
2.5 |
5.261 |
4.13 |
4.375 |
5 |
79.002 |
27.608 |
3.875 |
2.291 |
15.8 |
6.31 |
|
120 |
45 |
20 |
2.5 |
5.761 |
4.522 |
4.375 |
6 |
122.091 |
27.611 |
4.604 |
2.189 |
20.349 |
6.311 |
|
140 |
50 |
20 |
2.5 |
6.511 |
5.111 |
4.875 |
7 |
188.52 |
36.364 |
5.381 |
2.363 |
26.931 |
7.459 |
|
150 |
50 |
20 |
2.5 |
6.671 |
5.307 |
4.875 |
7.5 |
222.239 |
36.366 |
5.737 |
2.319 |
29.632 |
7.46 |
|
160 |
50 |
20 |
2.5 |
7.011 |
5.504 |
4.875 |
8 |
259.338 |
36.367 |
6.028 |
2.278 |
32.417 |
7.46 |
|
180 |
60 |
20 |
3 |
9.495 |
7.454 |
5.85 |
9 |
449.734 |
67.609 |
6.882 |
2.668 |
49.97 |
11.557 |
|
200 |
60 |
20 |
2.5 |
8.51 |
6.681 |
5.857 |
10 |
492.8 |
56.788 |
7.609 |
2.628 |
49.28 |
10.006 |
|
200 |
60 |
20 |
3 |
10.095 |
7.925 |
5.85 |
10 |
578.468 |
67.613 |
7.57 |
2.588 |
577.847 |
11.558 |
