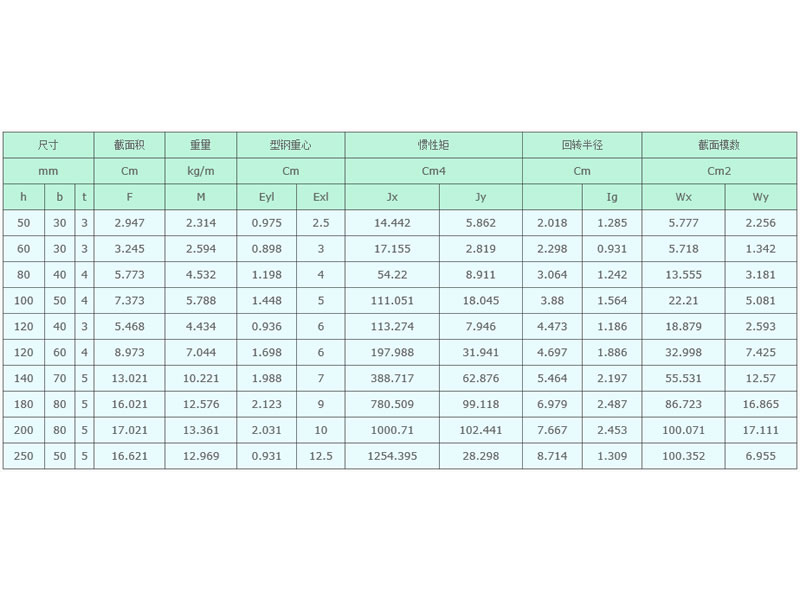

冷彎等邊槽鋼
冷彎等邊槽鋼
| 尺寸 |
截面積 |
重量 |
型鋼重心 |
慣性矩 |
回轉半徑 |
截面模數 |
| mm |
Cm |
kg/m |
Cm |
Cm4 |
Cm |
Cm2 |
|
h |
b |
t |
F |
M |
Eyl |
Exl |
Jx |
Jy |
|
Ig |
Wx |
Wy |
|
50 |
30 |
3 |
2.947 |
2.314 |
0.975 |
2.5 |
14.442 |
5.862 |
2.018 |
1.285 |
5.777 |
2.256 |
|
60 |
30 |
3 |
3.245 |
2.594 |
0.898 |
3 |
17.155 |
2.819 |
2.298 |
0.931 |
5.718 |
1.342 |
|
80 |
40 |
4 |
5.773 |
4.532 |
1.198 |
4 |
54.22 |
8.911 |
3.064 |
1.242 |
13.555 |
3.181 |
|
100 |
50 |
4 |
7.373 |
5.788 |
1.448 |
5 |
111.051 |
18.045 |
3.88 |
1.564 |
22.21 |
5.081 |
|
120 |
40 |
3 |
5.468 |
4.434 |
0.936 |
6 |
113.274 |
7.946 |
4.473 |
1.186 |
18.879 |
2.593 |
|
120 |
60 |
4 |
8.973 |
7.044 |
1.698 |
6 |
197.988 |
31.941 |
4.697 |
1.886 |
32.998 |
7.425 |
|
140 |
70 |
5 |
13.021 |
10.221 |
1.988 |
7 |
388.717 |
62.876 |
5.464 |
2.197 |
55.531 |
12.57 |
|
180 |
80 |
5 |
16.021 |
12.576 |
2.123 |
9 |
780.509 |
99.118 |
6.979 |
2.487 |
86.723 |
16.865 |
|
200 |
80 |
5 |
17.021 |
13.361 |
2.031 |
10 |
1000.71 |
102.441 |
7.667 |
2.453 |
100.071 |
17.111 |
|
250 |
50 |
5 |
16.621 |
12.969 |
0.931 |
12.5 |
1254.395 |
28.298 |
8.714 |
1.309 |
100.352 |
6.955 |
